How to Combine Cement and Natural Materials: Getting the Junction Right

In natural building circles, cement is often treated as the villain. Meanwhile, mainstream construction tends to dismiss earth, lime, and hemp as fragile or “alternative.” The truth is somewhere in between — and it’s worth exploring, because there is room for cement in natural building.The catch? Success almost always comes down to what happens at the meeting point. When dense, impermeable materials meet breathable, hygroscopic ones, physics takes over. Ignore that, and you’ll end up with soft floors, cracking plaster, or delamination.

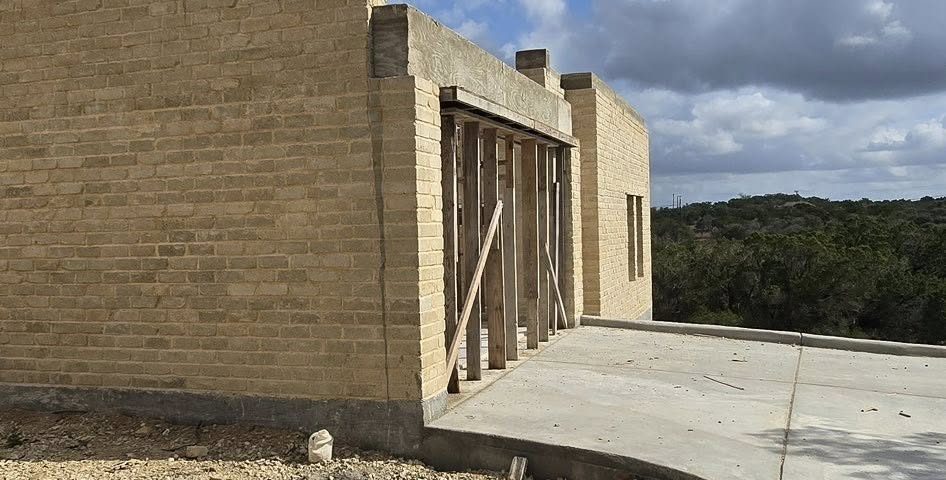

Understanding the Differences

Before combining materials, it helps to understand how they behave:

Cement-based materials (concrete slabs, cement render):

• Dense and relatively impermeable
• Strong in compression
• Dimensionally stable
• Dry primarily from exposed surfaces

Natural materials (earth, lime, hemp, straw):

• Vapour permeable (“breathable”)
• Hygroscopic — they absorb and release moisture
• Flexible and forgiving
• Dry in multiple directions

Both types have their strengths. The trick is understanding how they interact.

What Happens Where They Meet

When cement and natural materials touch, three key issues can arise:

• Moisture movement
Natural materials want to breathe. Cement slows or blocks moisture. If moisture gets trapped between the two, it can:

• Soften earth or lime layers
• Cause delamination
• Promote mould growth
• Slow drying dramatically

• Bonding and adhesion
Clay and earth don’t naturally stick to smooth concrete. Without surface roughening, bonding slurries, or a keyed interface, layers can separate over time.

• Differential movement
Cement is rigid. Natural materials expand and contract with humidity. That difference concentrates stress at the junction and often leads to cracks.

Earthen Floors Over Concrete — A Common Scenario

Imagine you have:

• A concrete slab with a plastic moisture barrier underneath
• Sliding doors 50mm above the finished floor
• Your plan: pour a 50mm clay–sand–straw topping

On paper, it seems simple. In reality, there are several challenges:

• Bonding: Earth doesn’t stick well to smooth concrete. Without roughening or a slip coat, delamination is likely.
• Shrinkage: 50mm is thick for a single layer. Cracking is almost inevitable unless the clay content is perfectly balanced and applied in layers.
• Moisture trapping: With a plastic barrier underneath and high humidity above, drying is slow. That’s especially true in tropical climates — FNQ, for example — where ambient moisture is high year-round.

Unstabilised earth floors work best in climates with reliable drying cycles. In humid regions, long-term durability depends on careful detailing and sealing.

Making it Work

This doesn’t mean you can’t combine cement and natural materials. It just means thinking through the junction. Some strategies:

• Reduce thickness

• 15–25mm earthen topping is easier to manage than 50mm.
• Less mass = less shrinkage = less stress.

• Improve mechanical key

• Roughen the concrete surface.
• Use a clay-sand slip coat.
• Consider a floating floor rather than fully bonded.

• Light stabilisation

• Small lime additions can improve strength and durability, especially in humid regions.

• Seal thoughtfully

• Multiple coats of tung or linseed oil followed by hard wax improve water resistance. Saturation matters more than surface shine.

• Test first

• A 1m² trial panel at full thickness can reveal how your mix behaves.
• Watch cracking and drying patterns through a humid period.

Breathability Is Key

Breathability isn’t about air movement; it’s about moisture movement. A breathable system:

• Absorbs incidental moisture
• Allows it to leave naturally

Concrete restricts that cycle. When combining materials, always ask:

• Where can moisture go?
• Can it dry in at least one direction?
• Am I creating a moisture sandwich?

If you block drying on both sides, problems are almost guaranteed.

Where Cement Works Well

Cement is not the enemy. There are plenty of scenarios where it makes sense:

• Structural slabs with breathable walls above
• Footings below lime or earth walls
• Critical structural elements needing compression
• Thin lime plasters over cement blocks (with proper detailing)

The key is ensuring the natural material can still dry. Cement below, breathable above — with moisture escape paths — can work beautifully.

The Balanced View

Cement isn’t evil. Natural materials aren’t fragile.

Hybrid construction works when you:

• Respect moisture movement
• Understand bonding limitations
• Allow drying pathways
• Design the junction carefully

In natural building, the meeting point is everything. Get that right, and you can combine the best of both worlds: strong, stable cement where it counts, and breathable, hygroscopic, living materials everywhere else.
